Technical Specifications
Type |

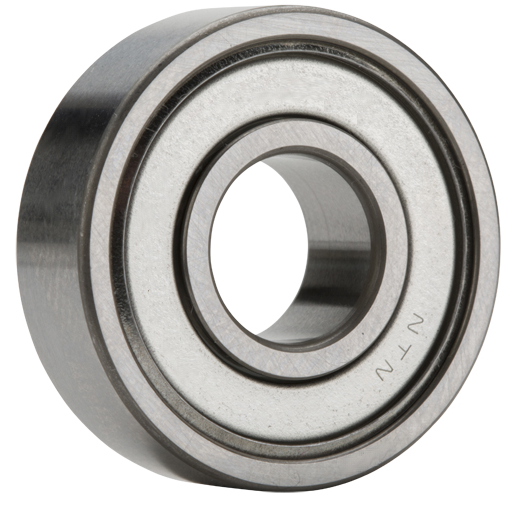

N/A Miniature / Extra Small Ball Bearing |
Bore Type |
N/A Round |
Material |
N/A High Carbon Chrome |
Cage Type |
N/A Stainless |
Cage Material |
N/A Steel |
Ball Material |
N/A Steel |
Limiting Speed - Grease |
N/A 49000 rpm |
Seal Type |
N/A None |
Seal Material |
N/A None |
Precision |
N/A Class 0 |
Configuration |
N/A One |
Factor |
N/A 12.7 |
Radial Internal Clearance |
N/A CN |
Static Load Rating |
N/A 50 lbf224 N0.22 kN |
Dynamic Load Rating |
N/A 144 lbf640 N0.64 kN |
Enclosure |
N/A Removable Double Shield |
Weight |
N/A 0.002 lb0.001 kg |
Operating Temperature Range |
N/A -40 to 250 ºF-40 to 120 ºC |
