Technical Specifications
Type |
N/A Miniature / Extra Small Ball Bearing |
Bore Type |
N/A Round |
Outside Ring Type |
N/A Flanged |
Material |
N/A High Carbon Chrome Steel |
Cage Type |
N/A Pressed |
Cage Material |
N/A Steel |
Limiting Speed - Oil |
N/A 37000 rpm |
Limiting Speed - Grease |
N/A 32000 rpm |
Configuration |
N/A One |
Factor |
N/A 12.5 |
Static Load Rating |
N/A 315 lbf1400 N |
Dynamic Load Rating |
N/A 800 lbf3550 N |
Enclosure |
N/A Single Shielded |
Weight |
N/A 28.660 lb13.000 kg |
Operating Temperature Range |
N/A -40 to 250 ºF-40 to 120 ºC |

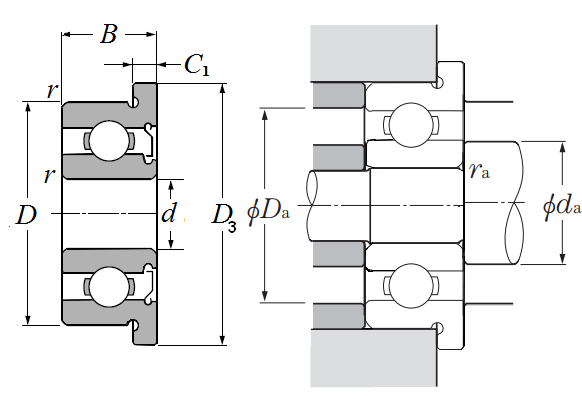

Dimensional Specifications
|
|
|
d |
N/A 0.315 in8 mm |
D |
N/A 0.8661 in22 mm |
B |
N/A 0.2756 in7 mm |
D3 |
N/A 0.9843 in25.000 mm |
C1 |
N/A 0.0591 in1.500 mm |
r |
N/A 0.0118 in0.300 mm |
da min |
N/A 0.3937 in10 mm |
da max |
N/A 0.4803 in12.200 mm |
Da max |
N/A 0.7874 in20 mm |
ras max |
N/A 0.0118 in0.3 mm |
